Mipi Tester Gear 2 Latest Setup

In this Article we will explain all about Mipi Tester Gear 2 Latest Setup. MiPi Tester Gear2 is intended for reading and writing user data on UFS and eMMC chips. MiPi Tester Box is a UFS / eMMC chip programmer intended for reading / writing / repairing data. Mipi Tester Box is an all in one service tool for phone boot repair, data recovery, memory programming and many other features. Supports MMC, ISP, JTAG, NAND, SPI interfaces. MIPITESTER / MiPi Box Pro Programmer for EMMC and UFS is a UFS / eMMC device programmer designed to read / write and repair data using both the ISP and Direct method. The set includes UFS (254/153) and eMMC / eMCP (153-169, 254, 221, 162-186) adapters.

Mipi Tester Gear 2 Latest Setup

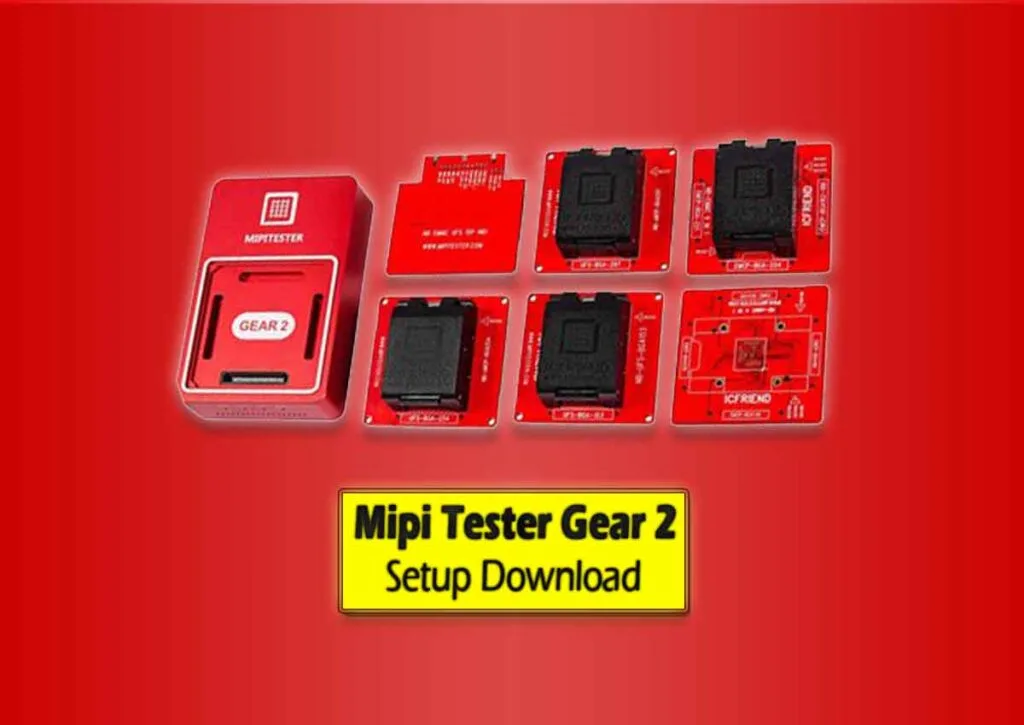

mipi tester gear 2 latest setup

Features

  • Read / Write eMMC and UFS memory chips
  • Supports ISP (In-System Programming)

Package Content

  1. MiPi Tester Box GEAR2 – 1 pc.
  2. NB-UFS-BGA153 – 1 pc.
  3. NB-UFS-BGA254 – 1 pc.
  4. NB-UFS-BGA297 – 1 pc.
  5. NB-EMMC-9IN1 – 1 pc.
  6. NB-eMMC-4IN1 – 1 pc.
  7. NB-EMMC-UFS-ISP-NB1 – 1 pc.

Mipi Tester Box

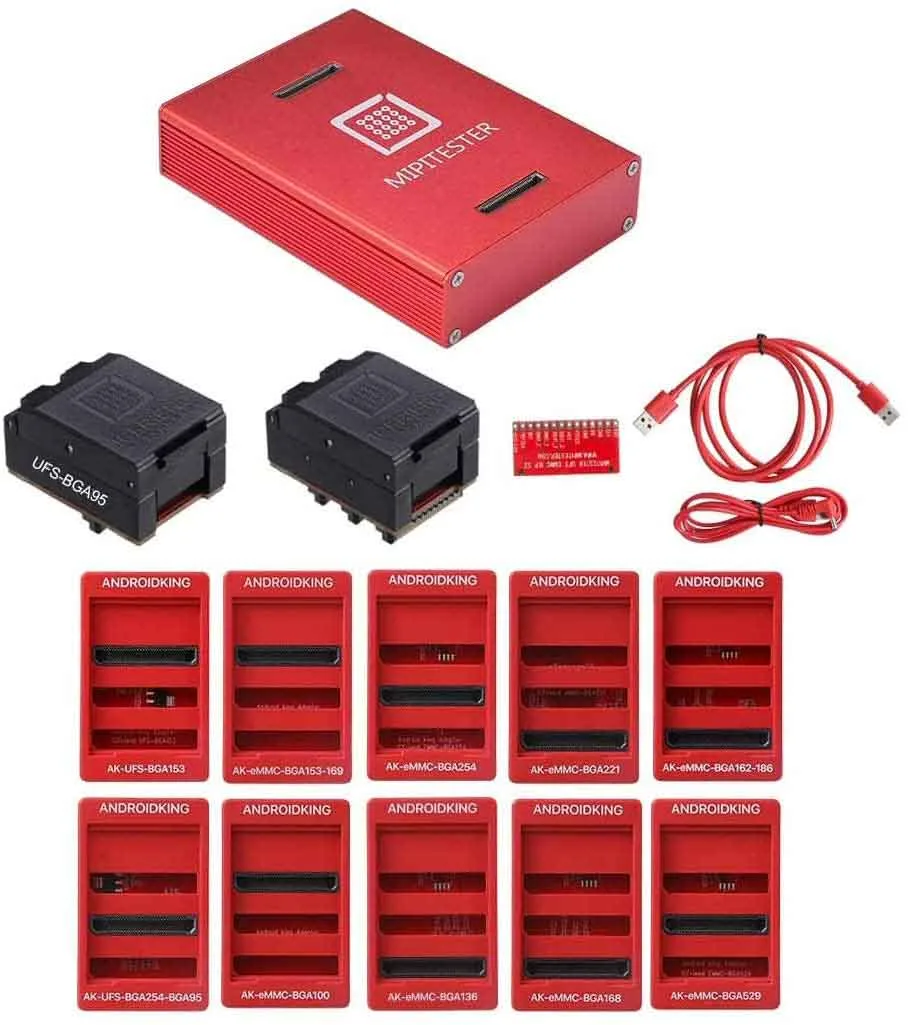

mipi tester box setup

Mipi Tester Box Features :

Read / Write eMMC and UFS memory chips
Supports ISP In-System Programming
Supported eMMC chip types
MiPi Box Pro Max supports 13 different eMMC chip sizes
and 8 different eMMC BGA chip types including

BGA100
BGA136
BGA168
BGA153
BGA169
BGA162
BGA186
BGA221
BGA529
BGA254

Supported UFS chip types

UFS BGA153
UFS BGA153
UFS BGA254
UFS BGA95

Frames
11.5*13
7.5*9
10*11
12*16
12*15
10*10
12*12
14*18
15*15

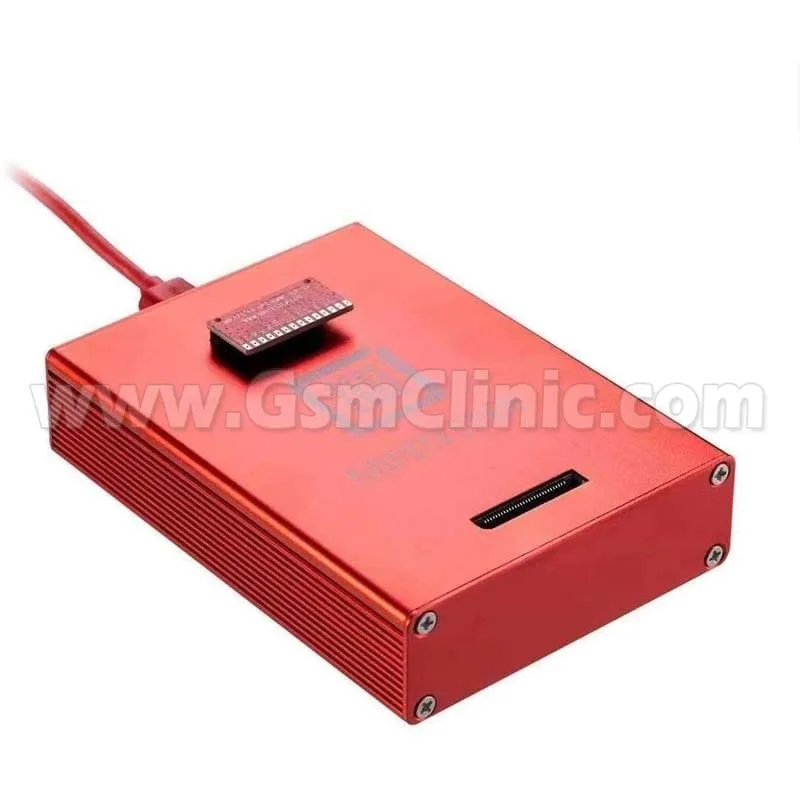

mipi_box_pro_max_price

MiPi Test Box is a UFS / eMMC chip programmer intended for reading / writing / repairing data.

Download the MiPi Drivers and Software

Mipi Tester Box UFS / UMCP / ISP – Data transfer speed

  • UFS/UMCP
    • UFS 2.0 / 2.1 / 3.0 / 3.1 supported
  • HS-G2 high speed mode
    • 80-130 MB/s (writing) / 100-180 MB/s (reading)
    • for 100 MB higher speed you need to use USB 3.0 + high speed SSD
  • UFS ISP
    Flying Line Mode PWM-G1 6-15MB/s (reading / writing)

Mipi Tester Box EMMC/EMCP Data transfer speed

  • EMMC 4.5 / 5.0 / 5.1 supported
  • HS200 80-120MB/s (write) / 120MB/s (read)
  • EMMC ISP 5-15MB/s (read / write)

Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash

  • Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
  • LUN cutting
  • Read / Write / Specify boot area
  • Read / Write EMMC/EMCP User Area and BOOT1/2
  • Read / Write advanced RPMB, GPP
  • Enhanced Area settings
  • Voltage output (VCC, VCCQ) 1.1 V – 3.3 V + intelligent short circuit protection

Mipi Tester Box Supported BGA:

  • UFS BGA 254
  • UFS BGA 153
  • eMMC BGA 153-169
  • eMMC BGA 254
  • eMMC BGA 221
  • eMMC BGA 162-186

How to Register MiPi Tester Box:

    1. Launch the Mipi Tester application
      Download Mipi Tester >
    2. Press the button indicated on the screenshot below.
Press the register button
    1. Enter username, password, and phone number (must be 11 digits long).
Enter user info
    1. Click the Register button.
Change software language
  1. Once you opened the software, you can change the software language.

Mipi Tester Box Package Content:

  1. MiPi Box Pro – 1 pc.
  2. MiPi eMMC/UFS ISP Adapter – 1 pc.
  3. MiPi UFS 254/153 Socket Adapter- 1 pc.
  4. MiPi USB 3.0 Cable – 1 pc.
  5. MiPi DC5V Power Cable – 1 pc.
  6. MiPi ANDROIDKING eMMC/UFS Socket Adapter – 11 in 1 set
    • AK-UFS BGA 254 – 1 pc.
    • AK-UFS BGA 153 – 1 pc.
    • AK-eMMC BGA 153-169 – 1 pc.
    • AK-eMMC BGA 254 – 1 pc.
    • AK-eMMC BGA 221 – 1 pc.
    • AK-eMMC BGA 162-186 – 1 pc.

Mipi Tester Box Frames:

  • 7,5*9
  • 11*10
  • 11.5*13
  • 12*15
  • 12*16

Mipi Tester Box Latest Setup Download :

Also see other eMMC Service Tools :

FAQ :

Q1. What is a Mipi Tester Gear 2 ?

Answer : MiPi Tester Gear2 is intended for reading and writing user data on UFS and eMMC chips.

Q2. What is the benefit of Mipi Tester Gear 2 ?

Answer : Mipi Tester Box is costly eMMC Service Tool in the market, work with phone and phone boot repair, data recovery, SPI memory programming and many other features. Supports UFS, eMMC, ISP, JTAG, SPI, NAND and much more protocols. NAND, SPI interfaces. security.

Q3. Mipi Tester Gear 2 setup price ?

Answer : Mipi Tester Box price note fix but check on our online Store.GsmClinic.com

Q4. Mipi Tester Gear 2 Latest Setup version  ?

Answer : Mipi Tester Gear 2 latest setup version is “MiPi Tester Box Latest Setup V2.22

Conclusion :

Mipi Tester Gear 2 is intended for reading and writing user data on UFS and eMMC chips. is a UFS / eMMC chip programmer intended for reading / writing / repairing data. Mipi Tester Box is an all in one service tool for phone boot repair, data recovery, memory programming and many other features. Supports MMC, ISP, JTAG, NAND, SPI interfaces. MIPITESTER / MiPi Box Pro Programmer for EMMC and UFS is a UFS / eMMC device programmer designed to read / write and repair data using both the ISP and Direct method. Mipi Tester Box latest setup version is MiPi Tester Box Latest Setup V2.22.
