In this Article we will explain all about VIVO V7 Plus Edl Point. If your VIVO V7 Plus runs on a Qualcomm Processor it will be able to use EDL Mode but not all Qualcomm processors can support EDL Pinout or EDL Test Point. Edl Point is also same like as Emergency Download Mode. EDL Point can be used to unlock Bootloader when your device bootloader is locked if unlockable. EDL Point is also used for phone’s Unlocking & Flashing.

VIVO V7 Plus Edl Point | VIVO V7 Plus Edl Pinout

VIVO V7 Plus is based on Qualcomm Processor it will be able to support EDL Mode but not all Qualcomm Processors can support EDL Method. The VIVO V7 Plus is an excellent smartphone from the VIVO Brand. If you are looking VIVO V7 Plus for install the Stock ROM,Custom ROM, Unlock Bootloader, Flashing or Unlocking then you’ll require an EDL Mode. Also if your VIVO V7 Plus Phone stops working or for any reason the must Upgrade its Oprating Software (ROM) then we require EDL Point because without EDL Mode our phone cannot be linked to the PC, so we need a VIVO V7 Plus EDL Point.

VIVO V7 Plus Required Tools for EDL Mode ?

PC or Laptop
Tweezer or Soldering Iron Station
Software Tool like Umt Dongle, Miracle Box, Mrt Dongle, Xiaomi Flash Tools, Etc.

Best Tool for Unlocking or Programming in Edl Mode ?

UMT Dongle
UnlockTool
Hydra Tool
Xiaomi Flash Tools
Avenger Tool
Miracle Box
MRT Dongle

Where we can use VIVO V7 Plus mode in Edl mode ?

There are 4 different methods to boot your Phone into EDL mode. Choose the one which is suitable for you :-

Method 1: Fastboot Mode

Turn off the device and boot into Fastboot mode. This can be done by pressing Volume Down (-) and Power buttons simultaneously until anything is placed on the screen. Now you need to connect the device with PC. Launch command prompt window from the Minimal fastboot folder and give the following command : fastboot oem edl

Method 2 : Using ADB

It is little bit similar to that of the above method. Here you need not to switch-off the device and boot into fastboot mode. Just connect the Mi Max with Windows computer using a standard USB cable and launch command prompt window from the folder where Minimal Fastboot files are located. Simply hold the shift key and then right click anywhere in the folder. From the various options, choose ‘Open Command Window from here’ and enter the command: adb reboot edl

Method 3 : Using Hardware keys

This is another method to boot Xiaomi Mi Max into EDL mode. Turn off the mobile and take a USB cable. Now connect one end of the cable to the PC port and leave the other end unconnected to the device. Now you need to press and hold Volume Up + Volume Down keys and then connect the other end of the USB cable with device. That’s the device will automatically boots into EDL mode.

Method 4 : Using EDL Test Point

Remove Battery Connector and connect this 2 Test Point. When you connect handset your phone Qualcomm port will be show.

How we can use VIVO V7 Plus EDL Mode ?

Xiaomi Phone Flashing Firmware or Upgrade
Xiaomi Patter Lock or Screen Lock Removing
Mi Account Removing
Frp Lock Removing
Mi Account Remove (only for old model not for latest model because MI Account related to Xiaomi server side so not done in EDL Mode)

How to Connect VIVO V7 Plus to EDL Mode ?

Disassemble VIVO Y71 back cover first but be carefull.
Remove Battery Cable (Battery is not needed in EDL Mode)

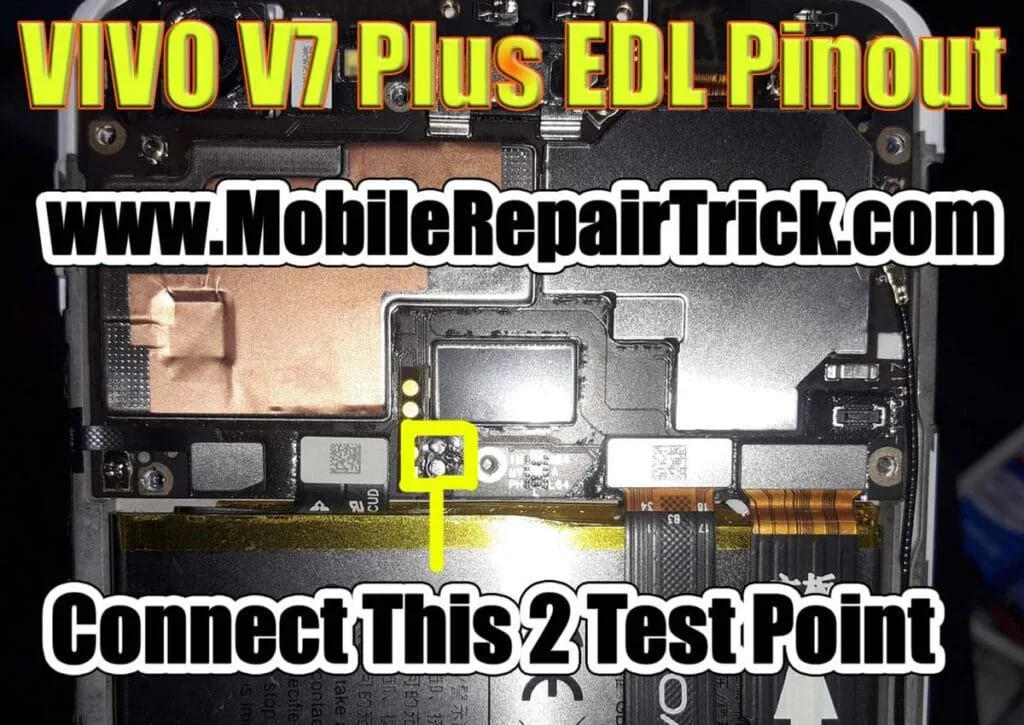

Now use Tweezer or Soldering Iron Station to connect 2 Dot Circle Point.(Dot Point as shown in the above image)
Connect the USB Data Cable to your Phone with PC or Laptop (Driver must be Installed).
Now your phone has successfully entered EDL mode & you will detect the Qualcomm USB QDLodar 9008 port on your PC or Laptop
Open Software Tool like Umt Dongle,Miracle Box,Mrt Dongle,Xiaomi Flash Tools,etc & perform what you whant.

Also See (Add Interlink to related same brand Edl Model already posted on our website)

Warning : This Article or Tutorial is Educational Purposes only & tested on many VIVO V7 Plus, so Procedure has been Tried and Tested at your on risk. We are not responsible for any damages from this procedure if you are not a Technician. If you used this EDL Mode Method you could void the warranty on your phone because of Service Center Warranty Policy, so use it yourself at the risk of.

If you have any doubt’s related this post and you need to answer any questions about this topic, so please ask questions via comments we will reply soon. If you like out Article related this contain leave a comment for us and we’re happy to help you. You can also request or inquire for help with any other various phone on EDL Point so please please ask via comments we will try to post a article as soon as possible.

Here is Our Video Tutorial for how to use VIVO V7 Plus Edl Point :

FAQ :

Q1. Whats is EDL Point/Edl Test Point

Answer : If your phone runs on a Qualcomm Processor it will be able to use EDL Mode but not all Qualcomm processors can support EDL Pinout or EDL Test Point. Edl Point is also same like as Emergency Download Mode. EDL Point can be used to unlock Bootloader when your device bootloader is locked if unlockable. EDL Point is also used for phone’s Unlocking & Flashing.

Q2. How we can use EDL Mode ?

Answer : Edl Point using for Flashing, Upgrade, Patter Lock or Screen Lock Removing, Removing, Frp Lock Removing, Mi Account Remove (only for old model not for latest model because MI Account related to Xiaomi server side so not done in EDL Mode)

Q3. Where we can use Edl mode ?

Answer : There are 4 different methods to boot your Phone into EDL mode. Choose the one which is suitable for you like Method 1-Fastboot Mode, Method 2-Using ADB, Method 3-Using Hardware keys, Method 4-Using EDL Test Point.

Q4. Best Edl Tool for Unlocking or Programming ?

Answer : UMT Dongle, UnlockTool, Hydra Tool, Xiaomi Flash Tools, Avenger Tool, Miracle Box, MRT Dongle, Etc.

Conclusion :

In thi post we explain all about EDL Pinout/Edl Test Point why we use this feature in VIVO V7 Plus. If your phone runs on a Qualcomm Processor it will be able to use EDL Mode but not all Qualcomm processors can support EDL Pinout or EDL Test Point. Edl Point is also same like as Emergency Download Mode. EDL Point can be used to unlock Bootloader when your device bootloader is locked if unlockable. EDL Point is also used for phone’s Unlocking & Flashing.
